BARDOLINE Asphalt Roof Shingles

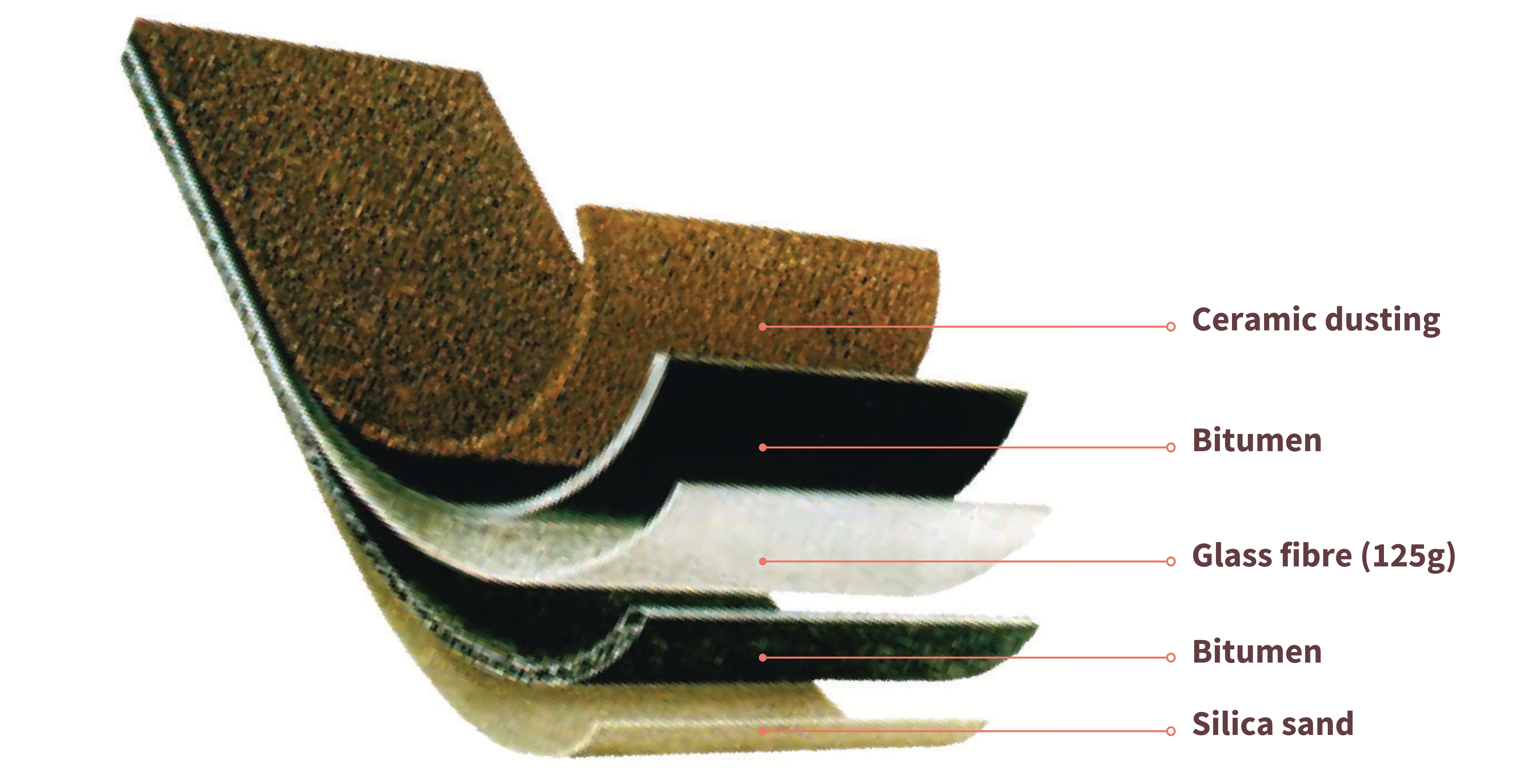

A glass-fibre and bitumen asphalt shingles that is light and versatile. Adaptable to any surface and can be attached to solid roof surfaces.
BARDOLINE Asphalt Roof Shingles
BARDOLINE high-quality asphalt shingles have been used for over 30 years to cover the roofs of leisure buildings and residential housing for new constructions and renovations.
Available profile in PH market:
- BARDOLINE PRO and PRO S 125 for all application types of all sizes, for a more durable and more sophisticated installation.
DESCRIPTION
Over the years, they have proven to be technically and aesthetically reliable, as well as extremely durable. BARDOLINE high-quality asphalt shingles are available in a large range of colors and shapes to get the performance and aesthetical result you wish.
BARDOLINE glass-fibre and bitumen roof shingles are light and versatile. BARDOLINE shingles give interest and appeal to the look. Whether it's the triangle, beaver tail or rectangle shape, the shingles present a harmonious overall picture, well integrated in the environment. As for all Onduline products, BARDOLINE contain no asbestos.
A roof is the face of the house. An individual roof cover sets the tone with character and charisma. Protection and beauty go hand in hand. BARDOLINE glass-fibre and bitumen roof shingles are light and versatile. A choice of shapes and colours are available for a creative roof design. BARDOLINE roof shingles have stood the test as an ideal roofing material for pitched roofs. They are adaptable to any surface. BARDOLINE roofing shingles offer rigid roof covering and meet all the requirements of a permanently secure roof.
| Profile | Bardoline Pro S125 - OPERA |
| Length | 998 mm (±3) mm |
| Width | 337 mm (±3) mm |
| Thickness | 3.3 / 6.6 (± 15%) mm |
| Weight | 12.3 (± 10%) kg/m2 |
| Exposed area | 143 mm |
| Roof slope (MIN/MAX) | 19º - 85º* |
| Shingles / bundle | 14 shingles |
| Coverage / bundle | 2.00 m² |
| Profile | Bardoline Pro S125 -BEAVER |
| Length | 1000 mm (±3) mm |
| Width | 340 mm (±3) mm |
| Thickness | 3.40 (± 15%) mm |
| Weight | 10.7 (± 10%) kg/m2 |
| Exposed area | 145 mm |
| Roof slope (MIN/MAX) | 17º - 85º |
| Shingles / bundle | 21 shingles |
| Coverage / bundle | 3.05 m² |
APPLICATIONS
INSTALLATION AND DOCUMENTATION
Bardoline asphalt shingle is easy to install. Check the technical data sheet or brochures for more information.
